• Thank you for choosing the Funbun app. We are pleased to have you with us. Enclosed is the documentation to help you set up and launch the app easily. Please read it carefully, as it contains important information. If you need any assistance or have questions, our support team is just a message away.

• All setup is performed using Terminal (SSH).
• Connect to your AWS server using:

ssh ubuntu@YOUR_SERVER_IP

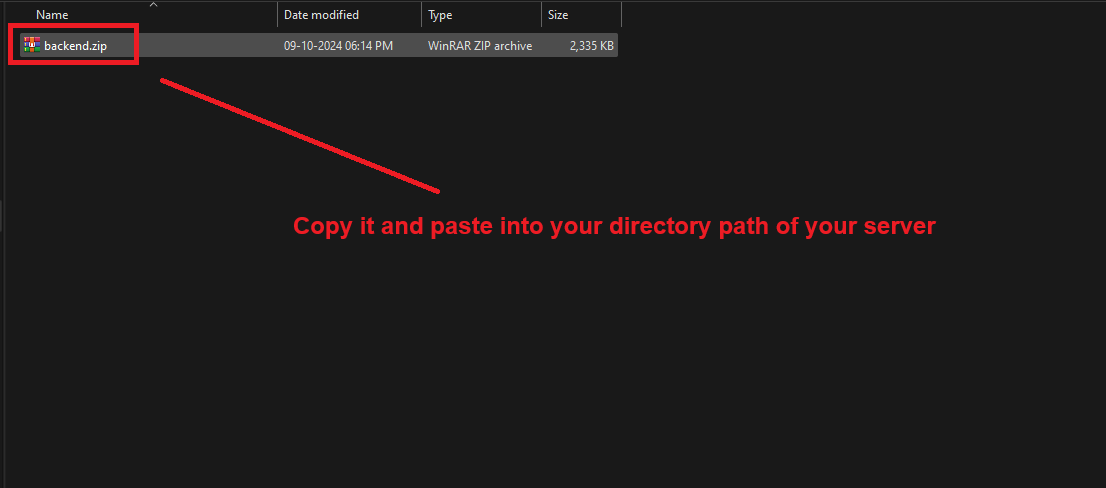

• Upload the backend zip file using WinSCP or SCP.
• Navigate to your project directory and extract:

cd /home/ubuntu/funbun unzip backend.zip -d backend

• Launch an AWS EC2 Instance.
• Instance Type: t3a.medium
• Operating System: Ubuntu 24.04 LTS
• Enable ports in Security Group:
• 22 – SSH
• 80 – HTTP
• 443 – HTTPS
• Attach key pair and launch the instance.

• Update system packages:

sudo apt update && sudo apt upgrade -y

• Install MariaDB (MySQL compatible):

sudo apt install -y curl software-properties-common sudo apt install -y mariadb-server mariadb-client

• Start MariaDB:

sudo systemctl start mariadb

• Enable MariaDB Service at Server Startup:

sudo systemctl enable mariadb

• Verify version:

mysql --version mysql Ver 15.1 Distrib 10.6.22-MariaDB

• Secure the database:

sudo mysql_secure_installation

• Install Nginx:

sudo apt install nginx -y

• Check Nginx version:

nginx -v nginx/1.18.0 (Ubuntu)

• Start and enable Nginx:

sudo systemctl start nginx sudo systemctl enable nginx

• Update Existing Pacakages

sudo apt update && sudo apt upgrade -y

• Install Required Dependencies:

sudo apt install -y curl ca-certificates build-essential

• Install NVM (Node Version Manager):

curl -o- https://raw.githubusercontent.com/nvm-sh/nvm/v0.39.7/install.sh | bash

• Reload terminal:

source ~/.bashrc

• Check NVM version:

nvm -v

• Install Node.js version v20.19.4:

nvm install 20.19.4 nvm use 20.19.4 nvm alias default 20.19.4

• Verify Node and npm:

node -v v20.19.4 npm -v 10.8.2

• Move Node and NPM to /usr/bin:

sudo ln -s ~/.nvm/versions/node/v20.19.4/bin/node /usr/bin/node sudo ln -s ~/.nvm/versions/node/v20.19.4/bin/npm /usr/bin/npm

• Install PM2 globally:

npm install -g pm2

• Login to MariaDB:

sudo mysql

• Create database and user:

CREATE DATABASE funbun; CREATE USER 'funbun_user'@'localhost' IDENTIFIED BY 'StrongPassword@123'; GRANT ALL PRIVILEGES ON funbun.* TO 'funbun_user'@'localhost'; FLUSH PRIVILEGES;

• copy schema.sql file from database folder into /home/ubuntu folder in server
• Import the database schema:

mysql -u funbun_user -p funbun < /home/ubuntu/schema.sql

• Navigate to project directory:

cd /home/ubuntu/funbun/backend

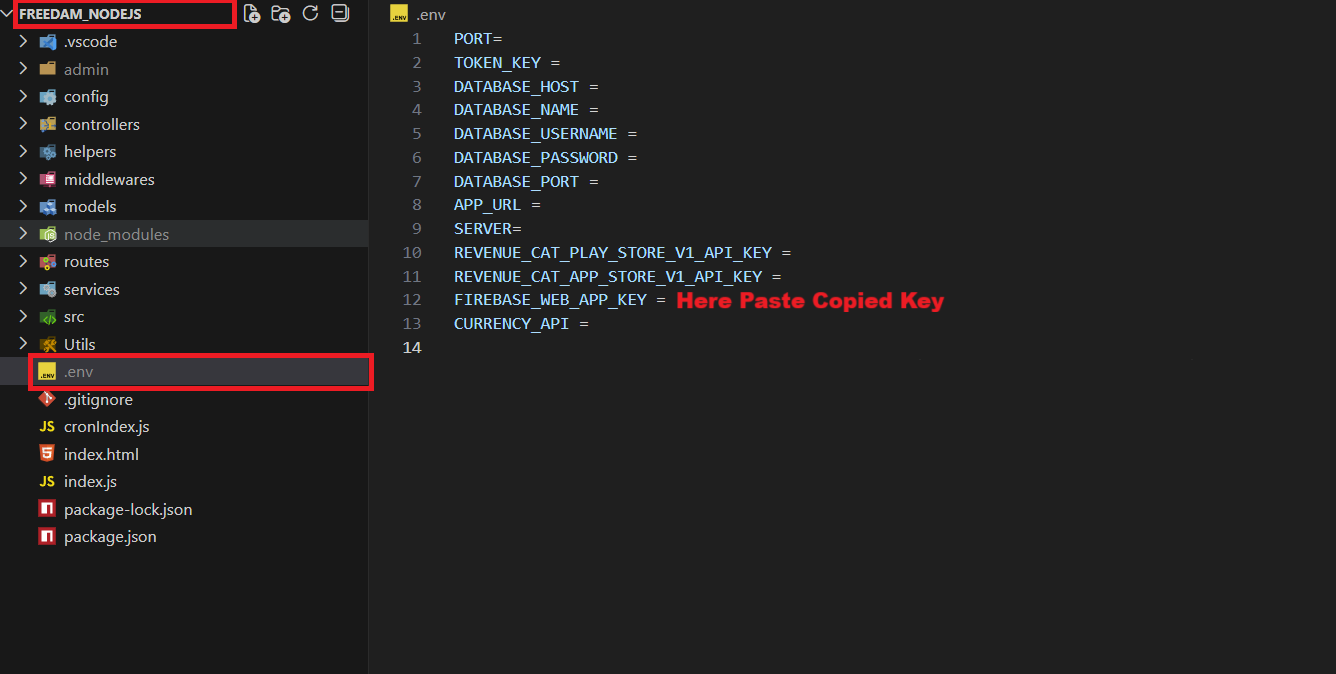

• Setup and configure the .env file:

mv .env.example .env

• Edit the .env file and update database, server, and app settings.

• Install project dependencies:

npm install

• Notification Setup (Firebase)
• Go to Firebase Console → Project Settings → Service Accounts.
• Click Generate new private key and download the JSON file.
• Upload the downloaded file to the backend config folder:

/home/ubuntu/funbun/backend/config

• Rename the downloaded file to firebase.json:

mv firebase-adminsdk-xxxxx.json firebase.json

• Start backend using PM2:

pm2 start index.js --name funbun pm2 save pm2 startup

• Restart backend after Firebase setup:

pm2 restart funbun

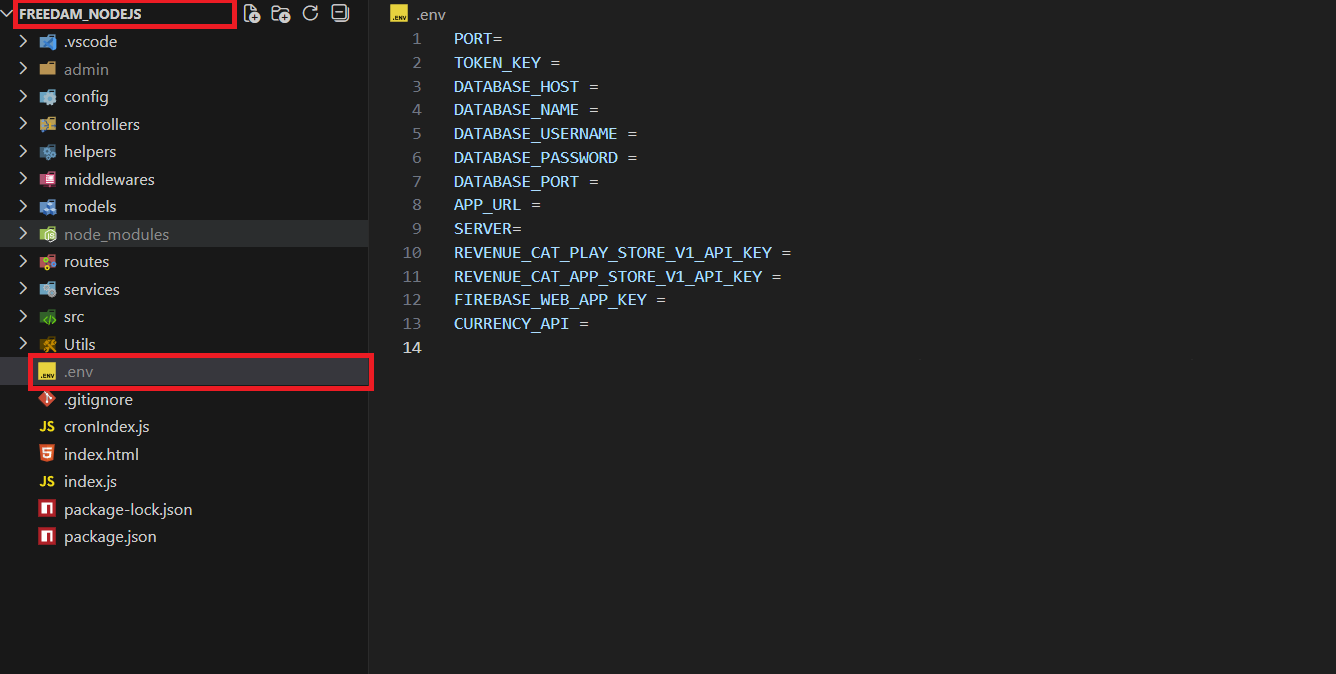

• PORT: The port number where your Node.js project runs. Commonly, 3000 or 5000.
• TOKEN_KEY: A secret key used for JWT encryption and authentication for API requests.
• DATABASE_HOST: The SQL database hostname. Usually set to "localhost" for local development.
• DATABASE_NAME: The name of your SQL database.
• DATABASE_USERNAME: The username used to connect to your database.
• DATABASE_PASSWORD: The password associated with your database username.
• DATABASE_PORT: The database port number. For MySQL/MariaDB, the default is 3306.
• APP_URL: The base URL of your backend server that your frontend or mobile app will call.
• SERVER: Environment mode. Use development for local testing or production for a live server.

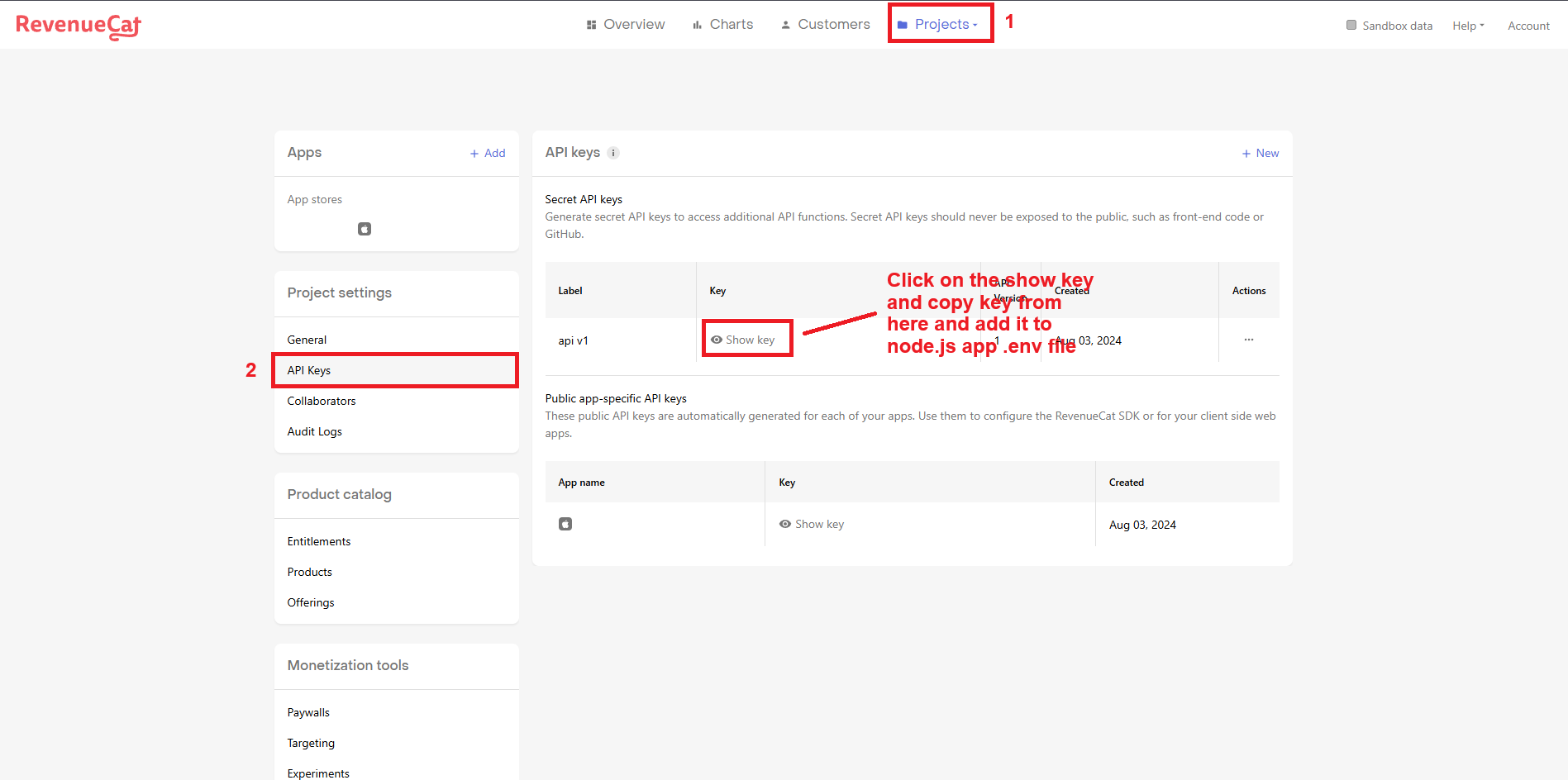

• REVENUE_CAT_PLAY_STORE_V1_API_KEY: RevenueCat API Key for handling Google Play Store subscriptions.
• REVENUE_CAT_APP_STORE_V1_API_KEY: RevenueCat API Key for handling Apple App Store subscriptions.
• FIREBASE_WEB_APP_KEY: Firebase Web API Key, used for dynamic links or Firebase Web SDK integrations.
• CURRENCY_API: Your currency API key (e.g., from CurrencyAPI) used for fetching exchange rates.

• All steps are performed using Terminal (SSH).
• Create a new Nginx configuration file for your domain:

sudo nano /etc/nginx/sites-available/funbundev.yourdworld.com

• Paste the following configuration (WITHOUT SSL):

            server {
            listen 80;
            server_name funbundev.yourdworld.com;

            access_log /var/log/nginx/funbundev.access.log;
            error_log /var/log/nginx/funbundev.error.log;

            # Main application proxy
            location / {
                proxy_pass http://127.0.0.1:9000;
                proxy_http_version 1.1;

                proxy_set_header Upgrade $http_upgrade;
                proxy_set_header Connection "Upgrade";
                proxy_set_header Host $host;
                proxy_set_header X-Real-IP $remote_addr;
                proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;

                access_log off;
            }

            # Socket.IO proxy
            location /socket.io/ {
                proxy_pass http://127.0.0.1:9000;
                proxy_http_version 1.1;

                proxy_set_header Upgrade $http_upgrade;
                proxy_set_header Connection "Upgrade";
                proxy_set_header Host $host;
            }
        }



• Save and close the file:

• Press CTRL + O → press Enter (to save)
• Press CTRL + X (to exit nano)

• Enable the site:

sudo ln -s /etc/nginx/sites-available/funbundev.yourdworld.com /etc/nginx/sites-enabled/

• Test Nginx configuration:

sudo nginx -t

• Expected output:

          nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
          nginx: configuration file /etc/nginx/nginx.conf test is successful


• If you see the above message, your configuration is valid.

• Restart Nginx:

sudo systemctl restart nginx

• Verify your application is accessible at:

http://funbundev.yourdworld.com

Step 1: Install Certbot

• Update package list:

sudo apt update

• Install Certbot with Nginx plugin:

sudo apt install certbot python3-certbot-nginx -y

Step 2: Generate SSL Certificate (Let’s Encrypt)

• Run the following command to generate SSL for your domain:

sudo certbot --nginx -d funbundev.yourdworld.com

• During the process:
• Enter your email address for renewal notifications
• Agree to the Let’s Encrypt terms
• Select the option to redirect HTTP to HTTPS

Step 3: Locate Generated Certificate Files

• After successful installation, Let’s Encrypt generates certificate files at:

/etc/letsencrypt/live/funbundev.yourdworld.com/

• Main files:
• fullchain.pem – SSL Certificate (contains -----BEGIN CERTIFICATE-----)
• privkey.pem – Private Key (contains -----BEGIN PRIVATE KEY-----)

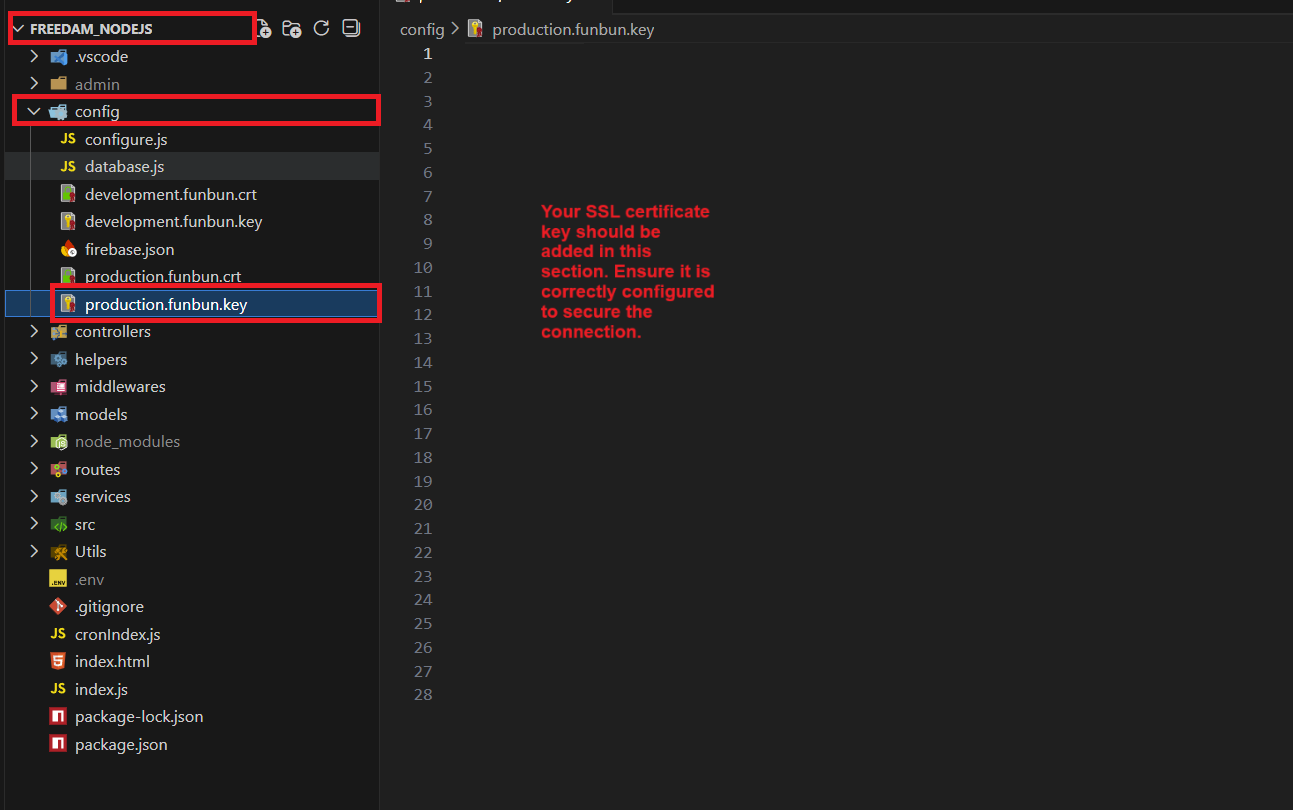

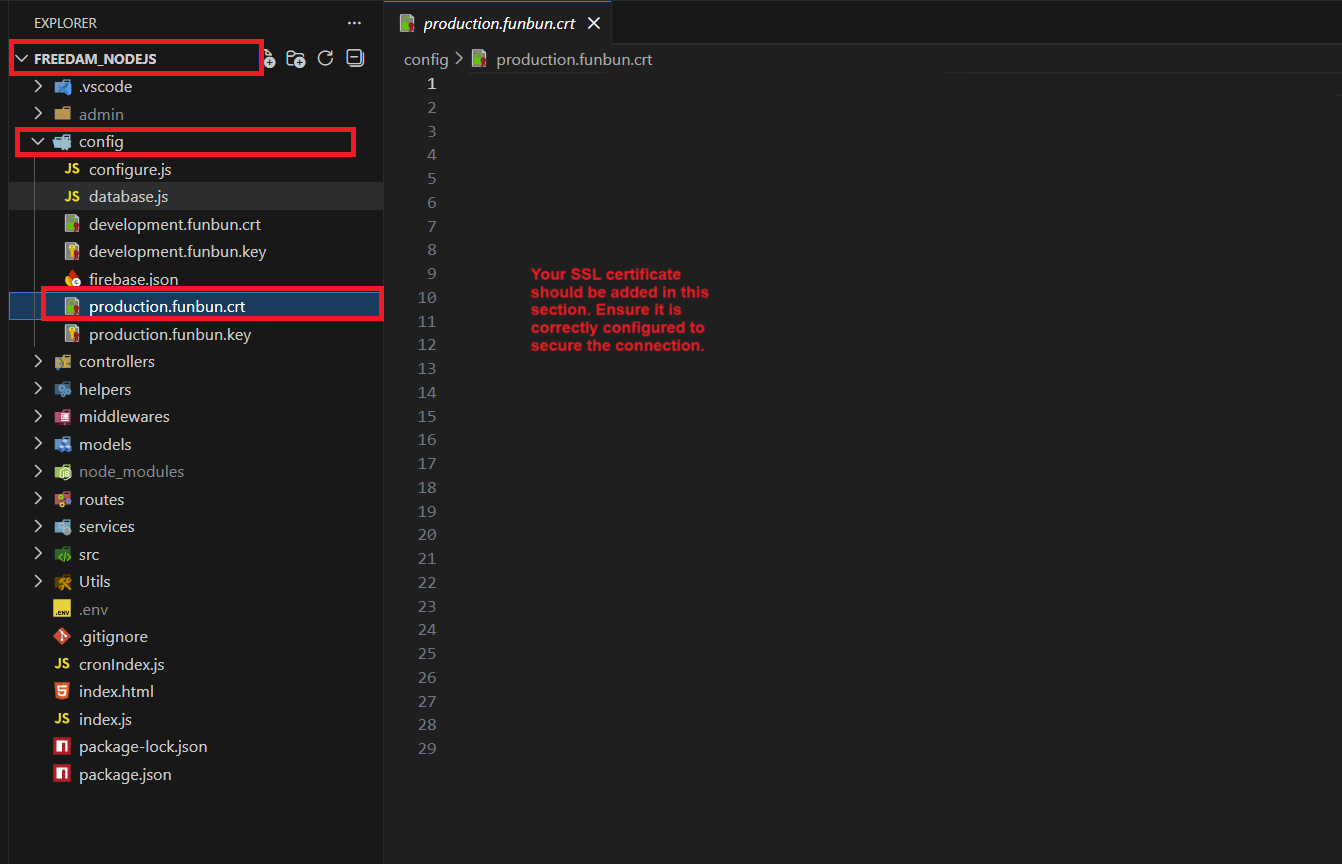

Step 4: Use Certificate in Your Backend (If Required)

• If your Node.js backend requires manual certificate files:
• Open your backend config directory.
• Copy content of:
  • /etc/letsencrypt/live/funbundev.yourdworld.com/fullchain.pem → paste into production.funbun.crt
  • /etc/letsencrypt/live/funbundev.yourdworld.com/privkey.pem → paste into production.funbun.key
• Restart your Node.js server after updating files.

Step 5: Verify Auto-Renewal

• Test automatic renewal:

sudo certbot renew --dry-run

Final Access URL

https://funbundev.yourdworld.com

• Open Admin Code in Vs studio code
• Rename .env.example to .env

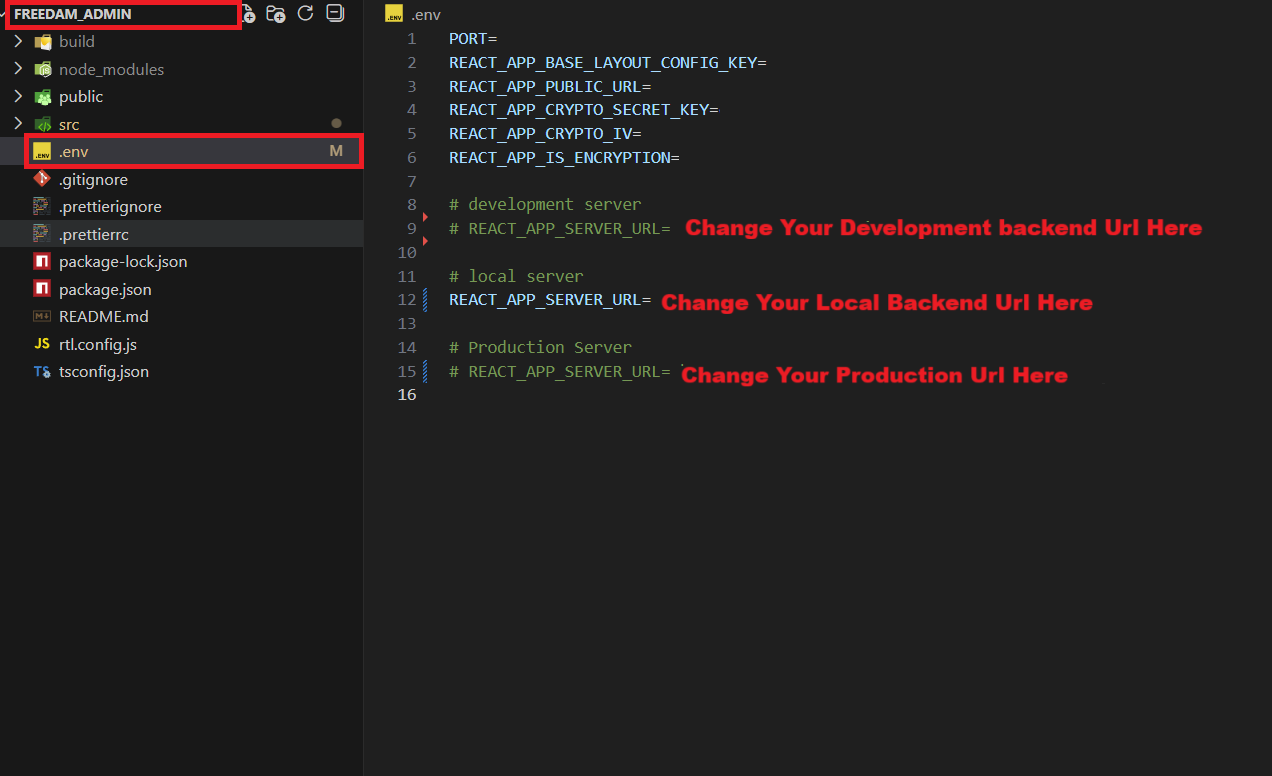

• Edit env file in admin
• update backend url to https://funbundev.yourdworld.com

• install Node modules

npm i

• Create production build:

npm run build

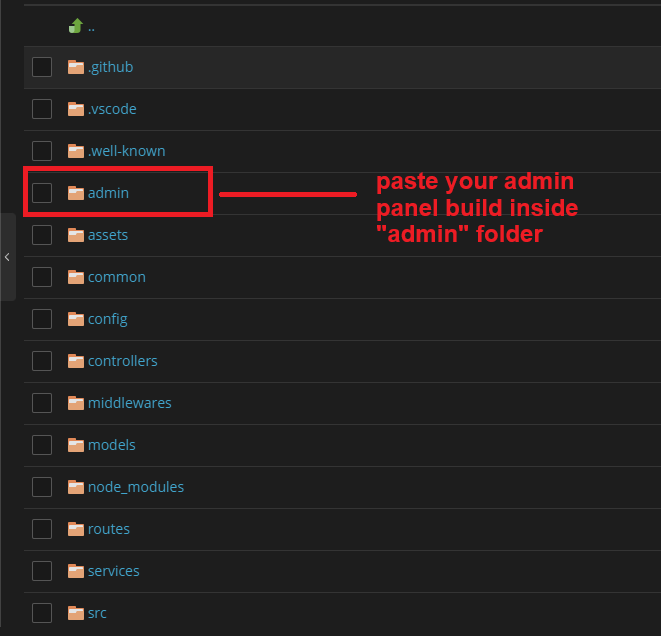

• Upload build files into backend admin directory.

• Access admin panel via configured domain.

1. Begin by visiting the Firebase website through the following link: https://firebase.google.com/
2. If you do not already have a Firebase account, kindly sign up for one. Otherwise, proceed to sign in with your existing account credentials.

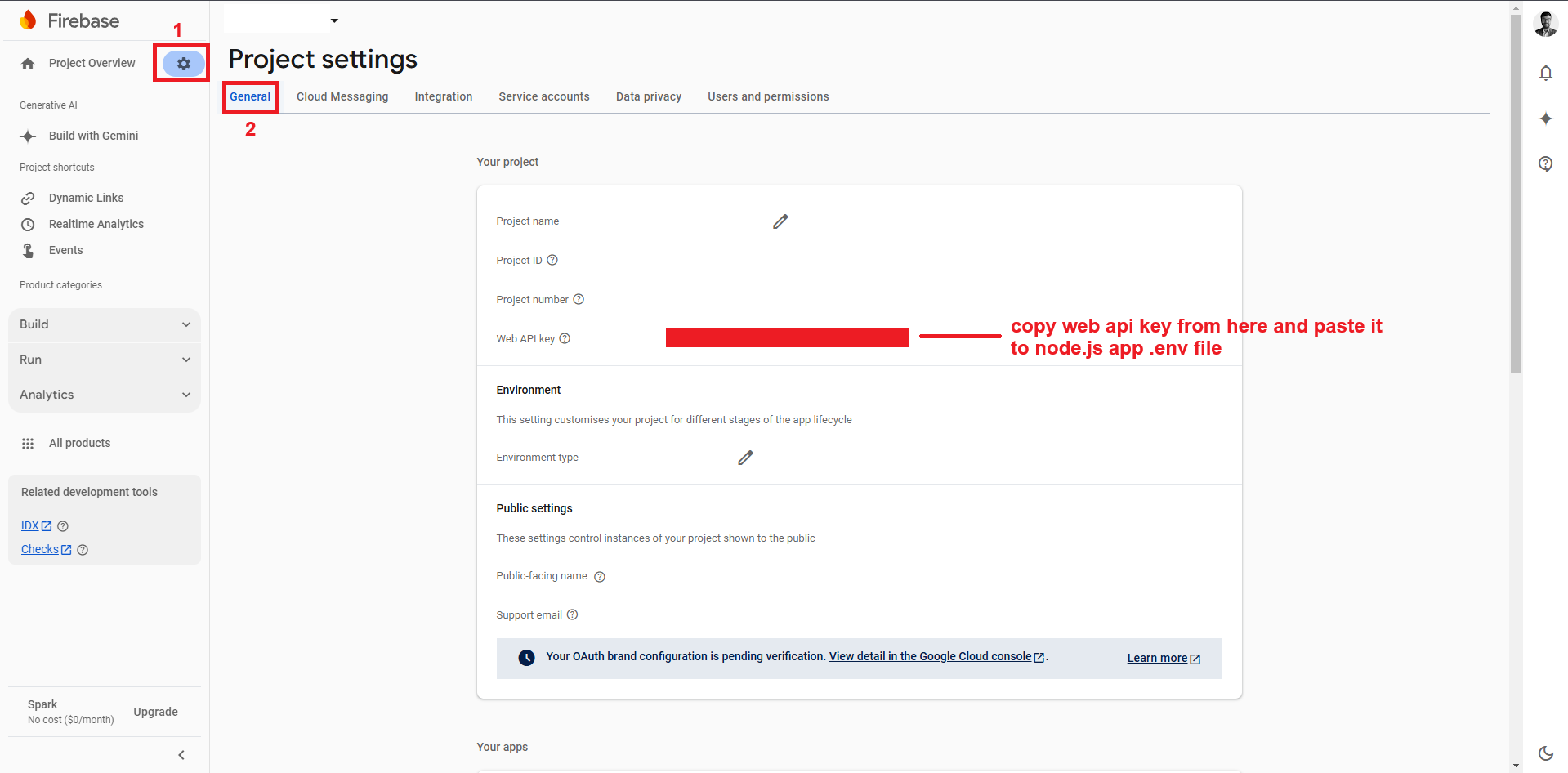

3. Navigate to the "Project Overview" section and click the setting icon.
